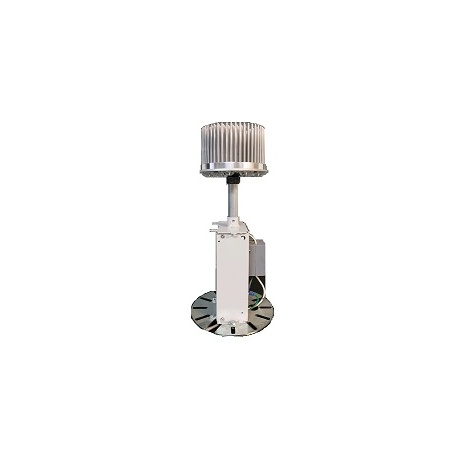

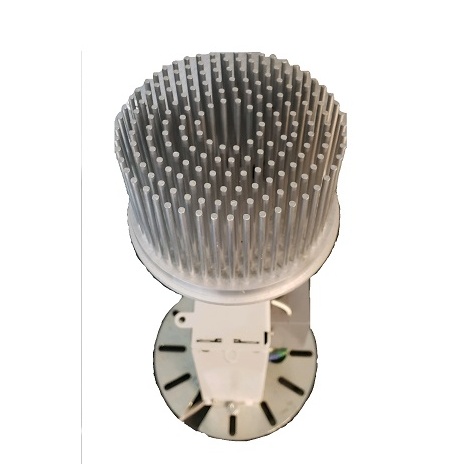

D4 LED RetroFit Kit(LED-D4-RETRO)


Features:
  • 6.5" Multi Position Mounting Disc fits Nearly Any Existing Post Top Luminaire
  • 100,000 Hrs Rated System Life
  • 90% Lumen Mantenance at 100,000 Hrs
  • Up to 30ft Mounting Height
  • Mercury Free and Lead Free (RoHs Compliant)
  • Quick Disconnect Wiring
  • Available in standard, dimming, and controls ready
  • 5 year warranty (extended warranty available)

Listing:

  • Design Lights Consortium Listed (DLC)
  • IP66 Rated Components
  • Designed to UL1449 3rd Edition & UL1598
  • UL Driver
  • Complies with IEEE C62.41
  • FCC Part 15 Class A
  • Energy Star TM-21

Electrical:

  • 30w=.25A, 40w=.32A, 60w=.48A, 80w=.64A @ 120VAC
  • 92%<Power Factor Corrected
  • Universal 120-277 VAC
  • 36 kV Surge Supperssion
  • <20% Total Harmonic Distortion
  • -40C to +40C Ambient Operating Temperature
  • Thermal Overload Protected
  • Electrical Short/Overload Protected

Downloads


LED-D4-RETRO.dwg LED-D4-RETRO.pdf
D4-30-2200K-T3.ies D4-30-2200K-T5.ies D4-40-2200K-T3.ies D4-40-2200K-T5.ies D4-60-2200K-T3.ies D4-60-2200K-T5.ies D4-80-2200K-T3.ies D4-80-2200K-T5.ies D4-30-3000K-T3.ies D4-30-3000K-T5.ies D4-40-3000K-T3.ies D4-40-3000K-T5.ies D4-60-3000K-T3.ies D4-60-3000K-T5.ies D4-80-3000K-T3.ies D4-80-3000K-T5.ies D4-30-4000K-T3.ies D4-30-4000K-T5.ies D4-40-4000K-T3.ies D4-40-4000K-T5.ies D4-60-4000K-T3.ies D4-60-4000K-T5.ies D4-80-4000K-T3.ies D4-80-4000K-T5.ies D4-30-5000K-T3.ies D4-30-5000K-T5.ies D4-40-5000K-T3.ies D4-40-5000K-T5.ies D4-60-5000K-T3.ies D4-60-5000K-T5.ies D4-80-5000K-T3.ies D4-80-5000K-T5.ies D4-30-2200K-T3.pdf D4-30-2200K-T5.pdf D4-40-2200K-T3.pdf D4-40-2200K-T5.pdf D4-60-2200K-T3.pdf D4-60-2200K-T5.pdf D4-80-2200K-T3.pdf D4-80-2200K-T5.pdf D4-30-3000K-T3.pdf D4-30-3000K-T5.pdf D4-40-3000K-T3.pdf D4-40-3000K-T5.pdf D4-60-3000K-T3.pdf D4-60-3000K-T5.pdf D4-80-3000K-T3.pdf D4-80-3000K-T5.pdf D4-30-4000K-T3.pdf D4-30-4000K-T5.pdf D4-40-4000K-T3.pdf D4-40-4000K-T5.pdf D4-60-4000K-T3.pdf D4-60-4000K-T5.pdf D4-80-4000K-T3.pdf D4-80-4000K-T5.pdf D4-30-5000K-T3.PDF D4-30-5000K-T5.PDF D4-40-5000K-T3.PDF D4-40-5000K-T5.PDF D4-60-5000K-T3.PDF D4-60-5000K-T5.PDF D4-80-5000K-T3.PDF D4-80-5000K-T5.PDF

Assembly Options:


 Kelvin
  • 2200 Kelvin (Soft White)
  • 3000 Kelvin (Warm White)
  • 4000 Kelvin (Cool White)
  • 5000 Kelvin (Bright White)
 Wattage = Lumens
  • 2200 Kelvin
  • #30w = 3,372Lmns
  • #40w = 4,196Lmns
  • #60w = 6,387Lmns
  • #80w = 8,017Lmns
  • 3000 Kelvin
  • #30w = 3,853Lmns
  • #40w = 4,675Lmns
  • #60w = 6,464Lmns
  • #80w = 8,050Lmns
  • 4000 Kelvin
  • #30w = 4,095Lmns
  • #40w = 4,969Lmns
  • #60w = 6,870Lmns
  • #80w = 8,556Lmns
  • 5000 Kelvin
  • #30w = 4,095Lmns
  • #40w = 4,969Lmns
  • #60w = 6,870Lmns
  • #80w = 8,556Lmns
 Voltage Range
  • 120-277v
 Light Distribution Pattern
  • Type III
  • Type V
